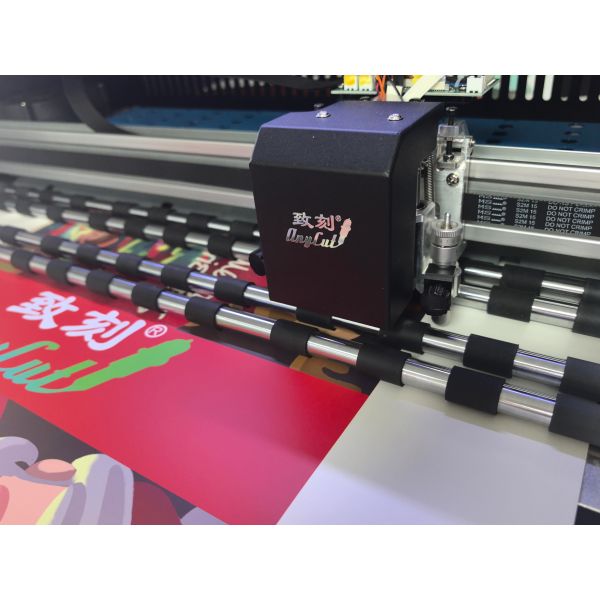

Anycut Rotary Wheel Creasing Cutter Double Heads Die Cutting Machine High-Speed Servo Motor 600mm Cutting Width

Brand Name : Anycut

Model Number : ZKSVD600PRO_RL

MOQ : 1 piece

Price : $3280-5000/piece

Payment Terms : ,T/T,Western Union

Certification : CE/FCC/RoHS

Place of Origin : Anhui

Supply Ability : 1-4 pieces：2days ;5-30 pieces：2-15 days;30-100 pieces:20 days

Delivery Time : 20-30 work days

Packaging Details : Host machine: L 1220mm*W 1220mm*H 780mm; Cabinet: L 1170mm*W 1150mm*H 860mm

Max. cutting width : 600mm

Auto contour cut : Automatically camera contour cutting

Motor : High speed servo motor

Max.material thickness : 600gsm

Max. cutting speed : 1600mm/s

Positoning mode : Qr code/Dot/Right angle

Support software : CDR/AI/PS/Contour software/Signmaster(optional)

Suitable cutting material : Self-adhesive sticker/coated paper/PVC

Contact Now

Anycut Rotary Wheel Creasing Cutter Double Heads Die Cutting Machine High-Speed Servo Motor 600mm Cutting Width



The ZKSVD600PRO_RL is an upgraded high-end die-cutting machine , featuring core adsorption wheel indentation and suction-type fully automatic paper feeding technology. It not only effectively eliminates static electricity and avoids double-sheet feeding issues, but also holds up to 1000 sheets at a time, maximizing the efficiency of large-batch processing. With a super large media width of 650mm, it adapts to various materials such as self-adhesive stickers, coated paper and PVC; 3000g pressure cuts 600gsm thick materials, and a 1600mm/s cutting speed balances efficiency and productivity.

Equipped with a 5.0-inch LCD touch screen, it supports WIFI, USB and network cable connections—one machine can link multiple computers, and USB flash drive offline operation is also easy to achieve. The dual Roland cutter heads plus CCD camera for fully automatic positioning, with ±0.01mm cutting accuracy, can precisely cut personalized business cards, special-shaped cards and cartons, and full cutting, half cutting and indentation can be completed in one go. The high-speed servo motor ensures stable operation, making it a professional-grade cutting solution for personalized customization in graphic shops and large-scale production in processing plants.

MODEL ZKSVD600PRO_RL
Max. media width 650mm
Max. cutting width 600mm
Auto contour cut Camera (automatically contour cutting)
Control panel 5.0inch touch screen
Motor High speed servo motor
Positoning mode Qr code/Dot/Right angle
Number of heads 2
Blade type Rowland blade
Packing size

Host machine:

L 1220mm*W 1220mm*H 780mm;

Cabinet: L 1170mm*W 1150mm*H 860mm
Machine size L 1050mm*W 1050mm*H 1200mm
Gross/Net weight 343kgs/237kgs
Cutting accuracy +/- 0.01mm
Repeatability 0.082mm
Max.material thickness 600gsm
Max. cutting speed 1600mm/s
Max.force 3000g
Connect or interface USB cable/Udisk/web cable/WIFI
Power ﹤150w
Working environment ﹢5℃-﹢35℃
Power supply 100v-240v(adaptive)
Suitable cutting material Self-adhesive sticker/coated paper/PVC
Support software CDR/AI/PS/Contour software/Signmaster(optional)
